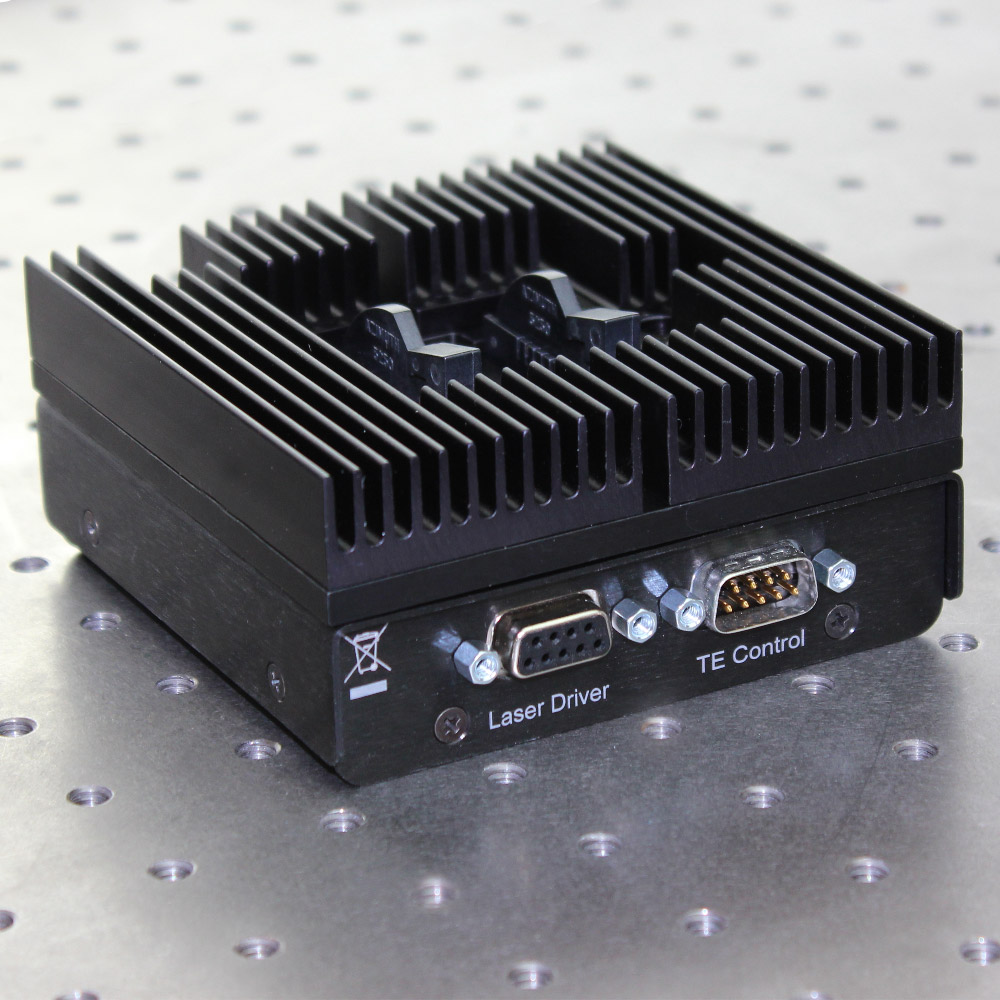

LDMOUNT 5A Butterfly Laser Diode Mount



From: $599.00

On Backorder

Bulk Pricing (6 - 14): $587.00

Contact Factory for High Volume Pricing
Price adjustments will be reflected in the cart. For availability information please contact us. All prices are in US dollars and are subject to change without notice. Prices do not include shipping charges. An additional OEM discount applies on orders over 14 pieces. Contact factory for pricing. If ordering from or shipping to Australia, China, Hong Kong or Israel please contact your distributor.
VERSATILITY

Designed for 14-pin butterfly laser diodes with internal thermistors and Thermo Electric Coolers (TEC), the LDMOUNT is a laser diode mount with integrated heat sinking, and simple connections between the drivers and the diode laser.

The LDMOUNT has easy connectivity. A zero insertion force (ZIF) socket holds the laser. Two 9-pin DSUB connectors enable TEC and laser driver control. Two basic butterfly laser diode types are supported. For any other pinout, the LDMOUNT-CU Card is available for hand wiring.

SAFETY

The LDMOUNT has several built-in safety features. These include a reverse bias protection diode across the laser diode, an interlock circuit for the laser diode current, and a TEC Active/Bypass switch to require active temperature control before laser current can be enabled.

FEATURES & BENEFITS
  • Capable of running lasers up to 5 A
  • Capable of running thermoelectrics up to 5 A
  • Compatible with 14-pin butterfly laser diode packages
  • Type 1 & Type 2 butterfly packages are supported with pre-soldered connection card
  • Zero insertion force (ZIF) socket holds laser diode
  • Laser interlock safety circuit
  • TEC Active/Bypass interlock safety circuit
  • Mounts to an optics table with standard 1/4-20″ screw
  • Compatible with 8 Wavelength temperature controllers and laser drivers
APPLICATIONS

The LDMOUNT is ideal for pump and communication diode lasers. The user is able to change between the types easily by using the provided pre-configured connection card.

Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.

Maximum Laser Current: 5A
Laser Polarity: Anode Grounded

Maximum TEC Current: 5A
Maximum TEC Voltage: Laser specific
Temperature Sensor Supported: Thermistor

Interlock Short Circuit Current: 10mADC
Bypass Switch Source Current: 1.1mA

LDMOUNT-5A Top

LDMOUNT 5A Dimensions

Standard card supports the following laser types:
The custom configuration card, LDMOUNT-CU, supports any configurations not shown below.

Type 1 Laser Schematic

Type 1 Laser Schematic

Alternate Type 1 Laser Schematic

Alternate Type 1 Laser Schematic

Type 2 Laser Schematic

Type 2 Laser Schematic

The custom configuration card, LDMOUNT-CU, supports any configurations not shown above.
