LD2TC5 LAB Series Combination Laser Diode & Temperature Control Instrument

  • COMING SOON: Contact Sales for availability
  • Output Current 2A Laser & ±5A TEC
  • Compliance Voltage 10V Laser & 15V TEC
  • Compatible with most sensor types and all LD/PD combinations
  • Temperature stability better than 0.0009°C
  • Laser cumulative current noise of 3.5 μA RMS
  • Modulation input bandwidth of 450 kHz (CC mode)
  • Intuitive user interface touchscreen
  • Adjustable current limits, over- and under-temperature protection
  • IntelliTune® PID temperature control


From:


Contact Factory for OEM Pricing
Price adjustments will be reflected in the cart. For availability information please contact us. All prices are in US dollars and are subject to change without notice. Prices do not include shipping charges. An additional OEM discount applies on orders over 9 pieces. Contact factory for pricing. If ordering from or shipping to Australia, China, Hong Kong or Israel please contact your distributor.
COMBINATION LASER DRIVER AND TEMPERATURE CONTROLLER

The LDTC LAB series of instruments integrate precision temperature control and low-noise laser current output. The temperature controller half is compatible with a variety of temperature sensors, including thermistors, RTDs, linear current, and linear voltage sensors. The laser driver half is compatible with all laser diode and photodiode pin configurations.

Two models are available, the LD2TC5 LAB and the LD5TC10 LAB. The LD2TC5 LAB outputs up to 2 and 5 A for the laser and thermoelectric, respectively. The LD5TC10 LAB outputs up to 5 and 10 A. Both models offer 10 V of laser compliance voltage and 15 V of thermoelectric compliance voltage.

PROTECT YOUR THERMOELECTRIC AND LASER

The instrument comes with a variety of powerful safety features to protect your equipment:

  • Adjustable current limit, with Brick-Wall Never-Exceed circuitry
  • Load failure protection
  • Temperature limits on the load
  • Current/voltage limits for both TEC and laser
  • Automatic laser shutdown upon TEC error available
INTUITIVE USER INTERFACE AND SUPERIOR SOFTWARE CONTROL

With Wavelength’s plug and play instrument, you have the ability to quickly set the controls using either the instrument touch screen or a remote computer, and results are easy to monitor. This allows you to take your application from the test bench to market quickly and efficiently.

IntelliTune®: INTELLIGENT AUTOTUNE

Wavelength’s proprietary IntelliTune algorithm characterizes the TE/sensor system’s response to the controller and determines the optimal PID control coefficients. It then automatically adjusts the PID control values as setpoint, tuning mode, or bias current change.

Run IntelliTune easily just off ambient and watch it change PID settings for a much higher or lower setpoint. After a single scan, explore either optimized Setpoint Response or Disturbance Rejection performance with your load to see which works best. Add or remove the D term to see if noise is an issue. IntelliTune lets you skip the manual characterization and it’s smart enough to really work—very little adjustment is needed after you have stored a successful characterization scan. See Application Note AN-TC13 for an in depth exploration.

USEFUL ACCESSORIES

An Interlock Kit containing a BNC terminator for the laser interlock and a pre-soldered DSUB to satisfy the laser interlocks is included with the instrument. Loose connectors for custom cable configuration (CKL-103, CKT-202, and CKT-204) are shipped with the unit. Full cables for both the laser connection and the thermoelectric connection are available.

APPLICATIONS

The LDTC LAB series of instruments are designed for electro-optical, medical, spectroscopic, and defense research where low-noise laser current is needed along with precision temperature control.

Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. The standard product can be easily modified to meet your application requirements.

Dimensions: 3.86 x 8.82 x 17.7 in (98 x 224 x 450 mm)
Supply Range: 100-240 VAC (±10%), 3.15 A, 50-60 Hz
Temperature Coefficient: 20 ppm/°C
Remote Interface: USB

LASER DRIVER SPECIFICATIONS
Output Current: 2 A
Compliance Voltage: 10 V
Cumulative Noise (RMS): 3.5 µA
Noise Current Density: 20 nA/√Hz
Output Current Stability: 120 ppm
Laser Display Resolution: 100 µA (<1 A) or 1 mA (≥1 A)
Modulation Bandwidth: 450 kHz (Constant Current mode)
Rise/Fall Time: 800 ns (to full scale)

TEMPERATURE CONTROLLER SPECIFICATIONS
Output Current: ±5 A
Compliance Voltage: 15 V
Temperature Stability: 0.0009°C
Temperature Display Resolution: 0.001 °C
Sensors Supported: Thermistors, 2-wire RTDs, linear current, linear voltage
IntelliTune: Disturbance Rejection or Setpoint Response

WIRING DIAGRAMS

Laser Wiring Thermoelectric Wiring
Thermistor Wiring LM335 Wiring AD590 Wiring

Laser Control Screen

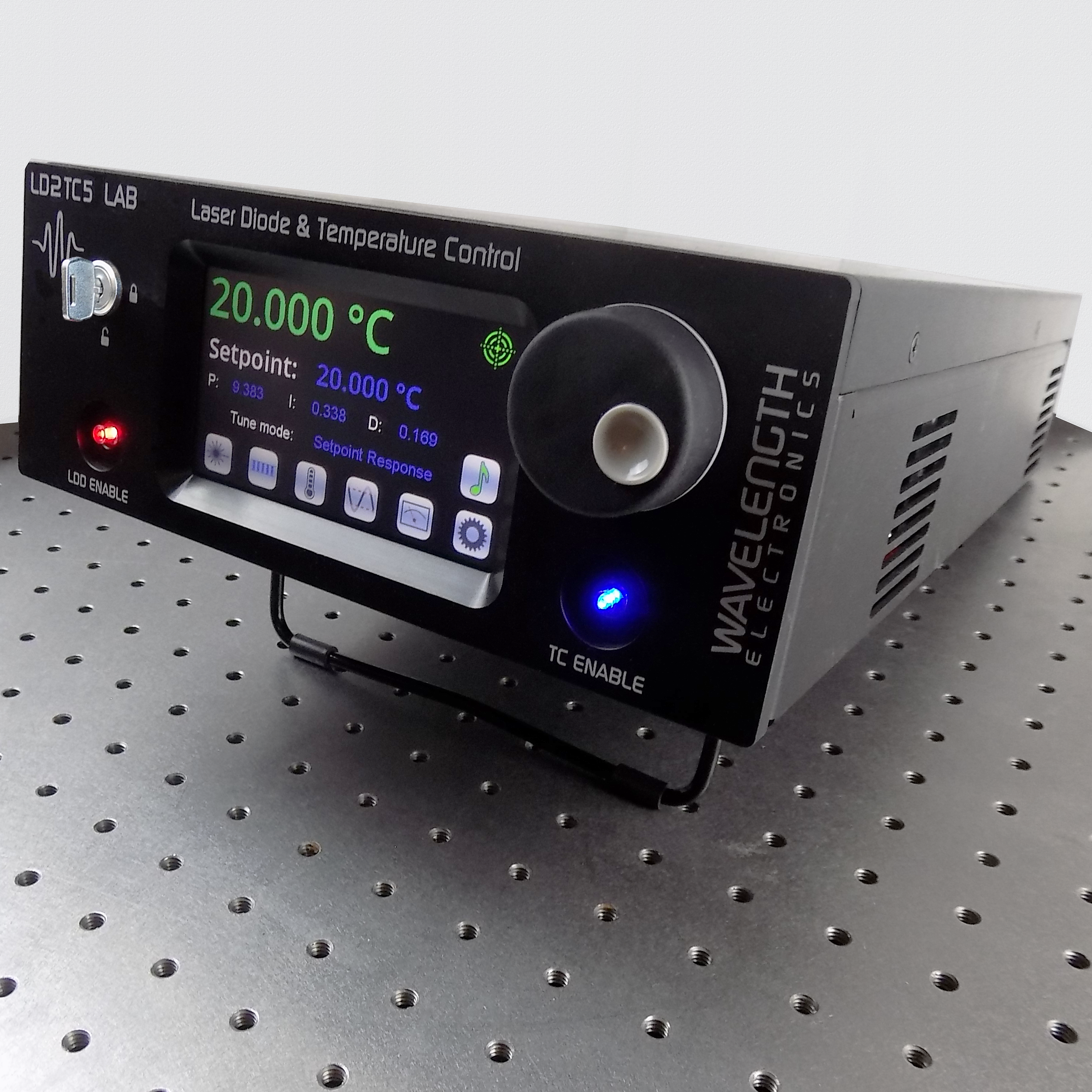

Thermoelectric Control Screen

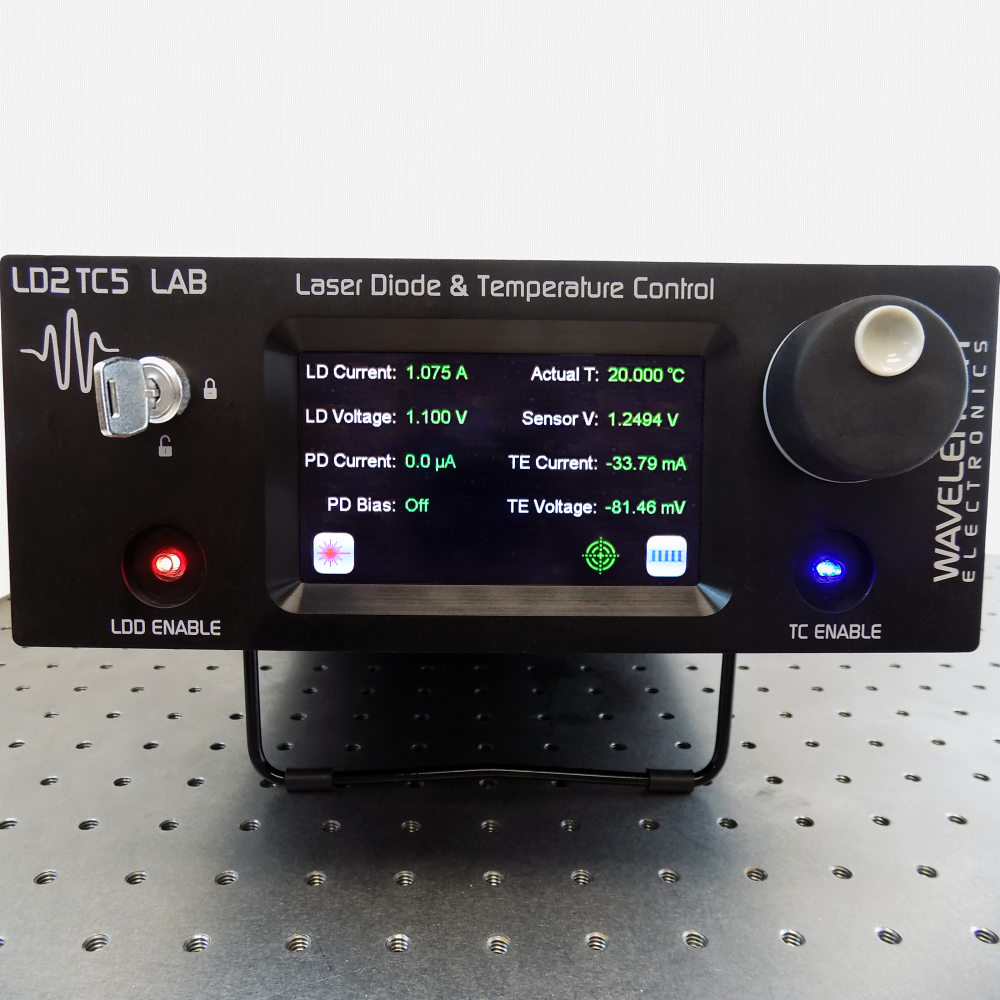

Dual Monitor Screen
