TCS620 20 kΩ Thermistor (2x3mm) Sold in 10-packs


From: $97.00

Bulk Pricing (6 - 14): $90.00

Contact Factory for High Volume Pricing
Price adjustments will be reflected in the cart. For availability information please contact us. All prices are in US dollars and are subject to change without notice. Prices do not include shipping charges. An additional OEM discount applies on orders over 14 pieces. Contact factory for pricing. If ordering from or shipping to Australia, China, or Hong Kong, please contact your distributor.

Precision temperature control starts with a precision temperature sensor. This is a ±1% thermistor that is 20 kΩ at 25°C.

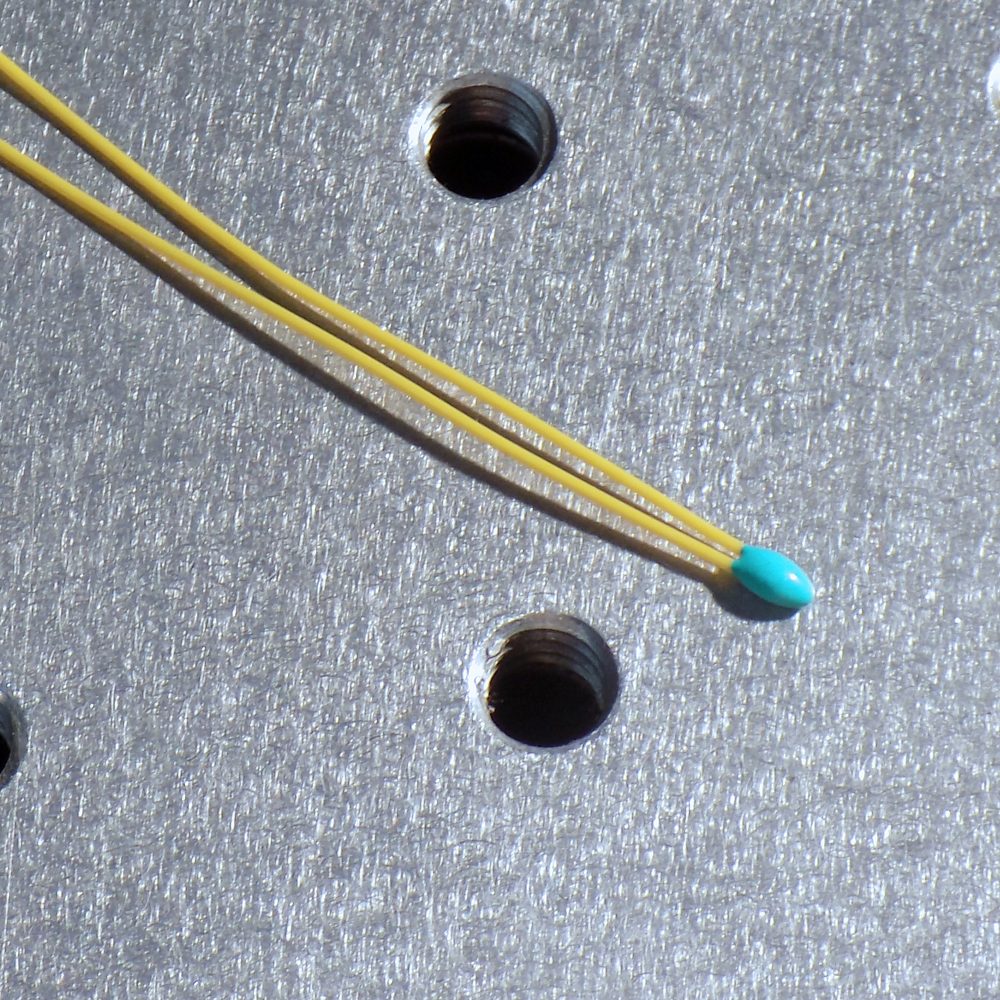

Wavelength is transitioning to a small epoxy-coated bead head with a 2.4 mm maximum outer diameter for applications where embedding the thermistor is required. Old phenolic-backed stock will be depleted before shipping new epoxy-coated stock. The epoxy-coating ensures durability and protects against exposure to moisture, high and low pressure, and corrosive environments. It has solid nickel wires with Teflon® insulation to provide isolation when assembled in metal housings.

Dissipation Constant is ~1 mW / °C in still air.
Thermal Time Constant is ~1 second in stirred liquid.

It is ideal for sensing temperature when embedded in materials or small laser packages. A complete Resistance vs. Temperature chart is included in the datasheet. It is sold in packs of 10.

Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.

Wavelength Temperature Controllers include stable bias current sources of 10 µA and 100 µA. The following selection guide shows where the thermistor signal is within range of the controller inputs.

TCS605 5 kΩ -50 to -2°C -20 to +33 °C
TCS610 10 kΩ -45 to +13°C -8 to +50 °C
TCS10K5 10 kΩ -45 to +13°C -8 to +50 °C
TCS620 20 kΩ -35 to +28°C +6 to +69 °C
TCS650 50 kΩ -18 to +49°C +25 to +92 °C
TCS651 100 kΩ -6 to +64°C +41 to +114 °C
