Heatsink Bracket for MULTI-HTSK and MULTI-HTSK-HI


From: $28.00

Bulk Pricing (2 - 9): $24

Contact Factory for OEM Pricing
Price adjustments will be reflected in the cart. For availability information please contact us. All prices are in US dollars and are subject to change without notice. Prices do not include shipping charges. An additional OEM discount applies on orders over 9 pieces. Contact factory for pricing. If ordering from or shipping to Australia, China, Hong Kong or Israel please contact your distributor.

The HTSK-BRKT heatsink bracket offers a simple solution to free up space on your optical table and improve the performance of heatsinks.

The heatsink bracket is compatible with both Wavelength Multi-Heatsinks, the MULTI-HTSK and the MULTI-HTSK-HI. These heatsinks are compatible with Wavelength chassis-mounted temperature controllers and laser drivers as shown in the table.

MODULE HTSK-BRKT Compatible with
PLDxK-CH Series
LDTCxx20 Series
PTCxK-CH Series
MPL Series
MPT Series

The bracket fits around the module, and the module can be installed without disassembling the bracket assembly.
[NOTE: module and heatsink are not included with bracket.]

The bracket mounts the heatsink in a vertical position, freeing space on your optical table. Convection is enhanced with the heatsink mounted vertically, so your Wavelength control module runs cooler at high powers. It’s also a lot simpler to force additional airflow over the heatsink with a spare fan so you can use the heatsink to its full-rated capacity.

Mounting holes are spaced and drilled to match optical table tops, and additional holes are provided in case you are mounting the bracket to a different surface.

The heatsink bracket is compact, economical, and provides valuable benefits that will help streamline your optical table and lab bench setups.

Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.

Dimensions: 6.0″ x 4.5″ x 1.5″
Material: Black anodized aluminum

Mounting holes:

0.281″ diameter drilled for 1/4-20 screws on 5″ centers for optical tables;

0.140″ diameter drilled for #6 screws on 4″ centers for other surfaces

HTSK-BRKT Mechanical Dimensions

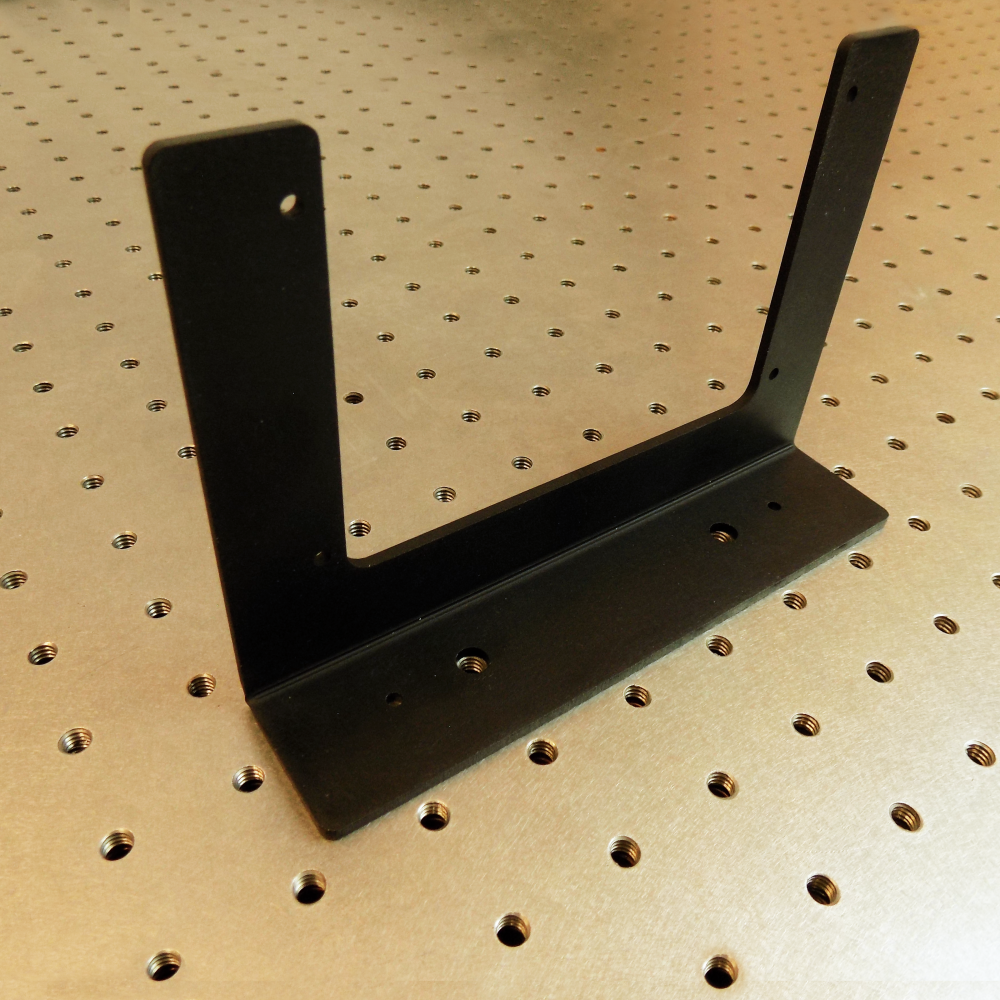

Heatsink Bracket

HTSK-BRKT as it interfaces with MULTI-HTSK and MULTI-HTSK-HI (sold separately)

Heatsink Bracket Install
