Evaluation PCB for WHY56ND Temperature Controller



From: $97.00

Bulk Pricing (2 - 9): $94.00

Contact Factory for OEM Pricing
Price adjustments will be reflected in the cart. For availability information please contact us. All prices are in US dollars and are subject to change without notice. Prices do not include shipping charges. An additional OEM discount applies on orders over 9 pieces. Contact factory for pricing. If ordering from or shipping to Australia, China, Hong Kong or Israel please contact your distributor.

Use the WHY56ND-EV Evaluation Board to rapidly prototype a complete temperature control system using the WHY56ND Temperature Controller. Drive current to a thermoelectric or resistive heater and control temperature using thermistors, or 100 Ω Platinum RTDs. Onboard switches, connectors, and trimpots make configuration and operation simple.

The WHY is not included.

There is a current enable switch with LED indicator. Complete cable sets are included. Power and monitors are on one connector. Load and sensor pins are on a second connector. To calculate sensor resistance (therefore temperature), use two monitors and an equation from the datasheet. Adjust temperature setpoint using an onboard trimpot. Measure the resistance while a switch removes the trimpot from the circuit then switch to the “Run” position to resume operation. Two SMT test points simplify the resistance measurement. Other trimpots configure heat and cool current limits, proportional gain and integrator time constant. An onboard fan connection can power a WXC303 or WXC304 (+5 V or +12 V DC fan) attached to a WHS302 heatsink.

Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.

Size: 2.25 x 2.25 x 1.1″ (with WHY56ND installed)
57 x 57 x 28 mm

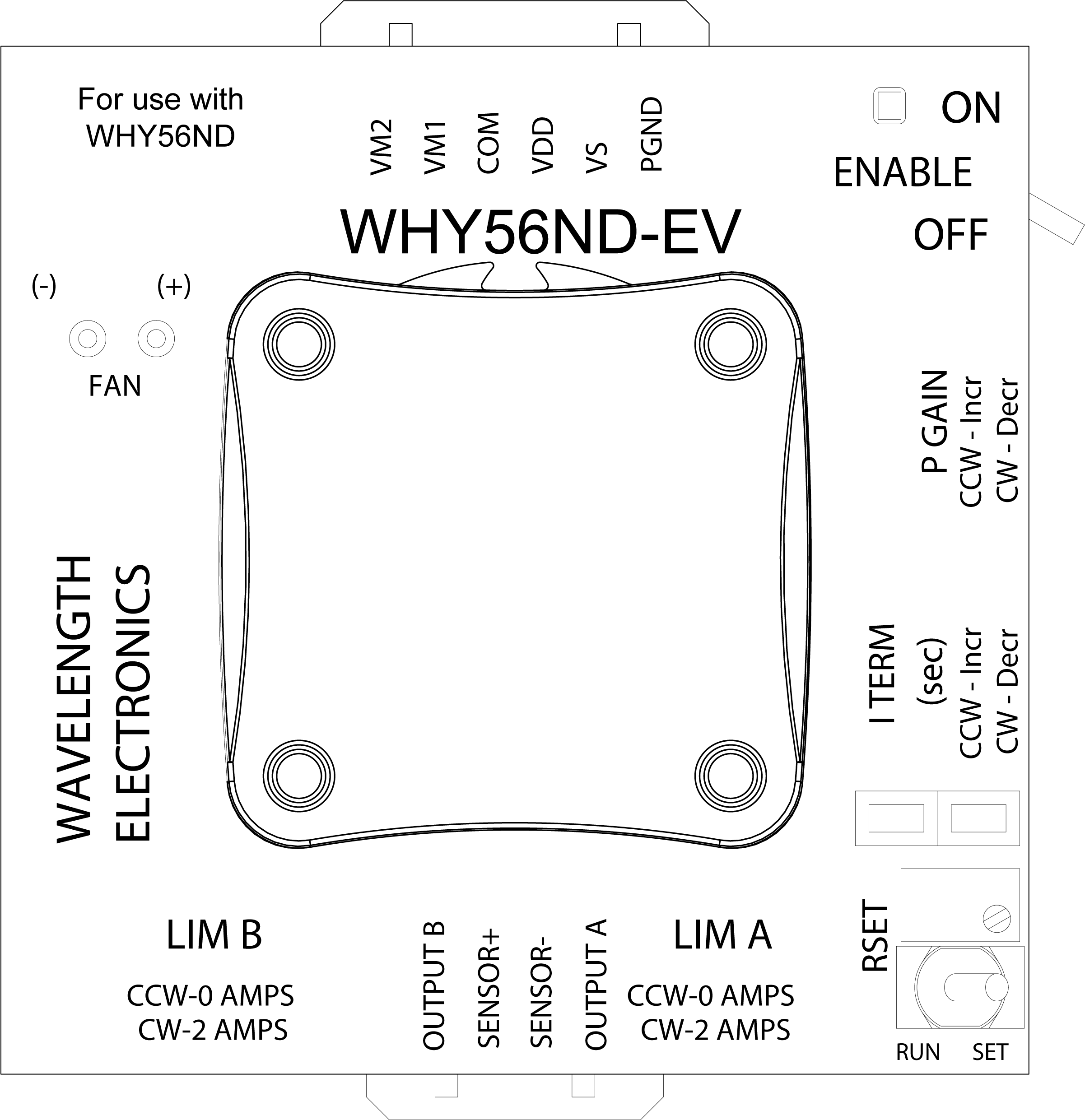

Top View of WHY56ND-EV

NOTE: The WHY56ND and WTC32ND do NOT have the same pin configuration. See Datasheet for pin configuration. The WHY56ND-EV evaluation board cannot be used with the WTC32ND.
