WCB102 MPL Cable, DB15M / Unterminated



From: $120.00

Call for Quote

Please submit the request for more information on price and availability.

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Bulk Pricing (6 - 14): $118.00

Contact Factory for High Volume Pricing
Price adjustments will be reflected in the cart. For availability information please contact us.

All prices are in US dollars. Prices do not include shipping charges. All prices will be confirmed at time of shipment and may include pass-through tariff estimates.

If ordering from or shipping to Australia, China, or Hong Kong, please contact your distributor.

The WCB102 cable is compatible with the MPL series laser diode drivers: MPL7500MPL2500MPL500, or MPL250. It is a 3 foot cable, one 4 conductor, one 8 conductor, 22 AWG. Terminated with 15-pin male D-sub connector on one end. Unterminated on the other.

Free, effective, and responsive technical support is available to simplify integration of Wavelength products into your OEM design. Standard product can be easily modified to meet your application requirements.

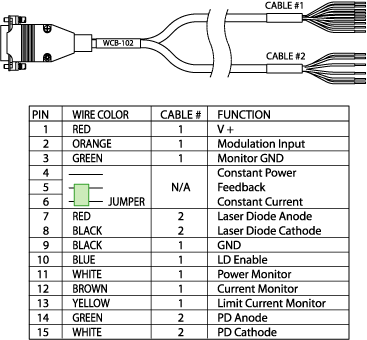

Cable Diagram of WCB102

Cable Diagram of WCB102
