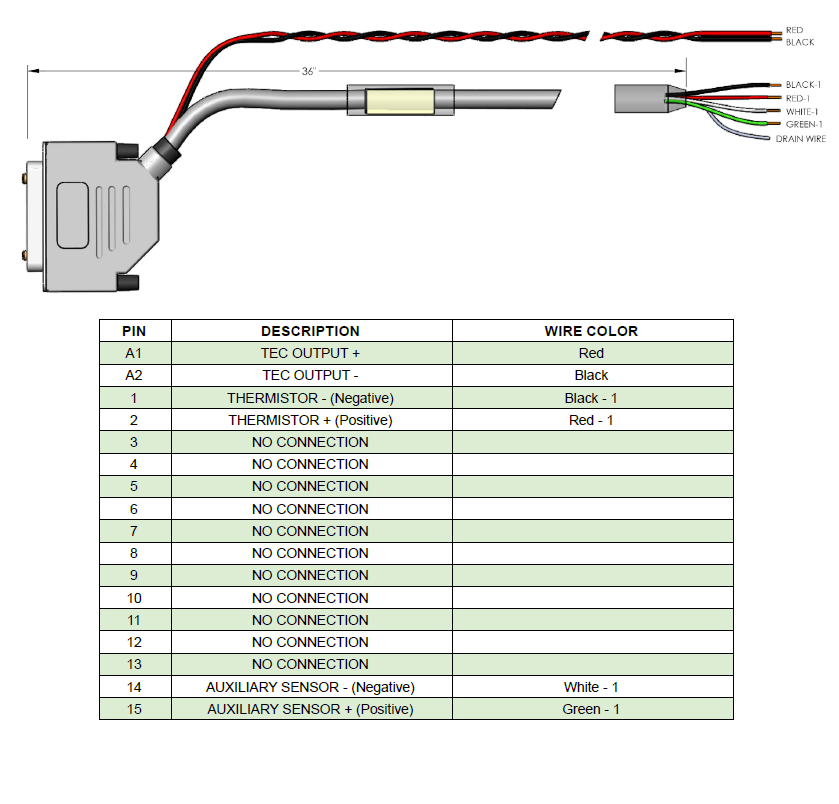

The WCB406 cable mates with the Thermoelectric Output and Sensor connector on the rear panel of the TC5 LAB & TC10 LAB temperature control instruments. It is 3-feet long, 14-gauge on the power TEC pins, 22 AWG on the rest of the wires. Terminated with the 15+2 pin D-sub connector and 45° hood on one end. There are three other ends. One is twisted pair red & black 14-gauge wire for the thermoelectric connections. One is four 22-gauge wires for thermistor and auxiliary sensor inputs. The last is a short cable that mates with the IR sensor. This is only 6″ long.
